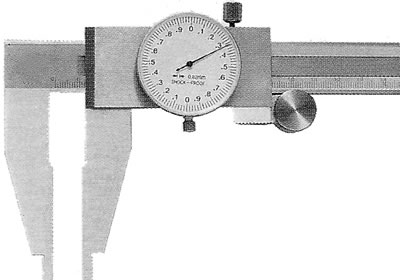

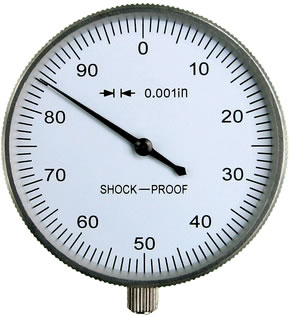

| Range | graduation | Accuracy | Range | graduation | Accuracy |
|---|---|---|---|---|---|
| 0-12" | 0.001" | ±0.002" | 0-300mm | 0.02mm | ±0.03mm |
| 0-18" | 0.001" | ±0.002" | 0-450mm | 0.02mm | ±0.04mm |
| 0-20" | 0.001" | ±0.002" | 0-500mm | 0.02mm | ±0.04mm |
| 0-24" | 0.001" | ±0.003" | 0-600mm | 0.02mm | ±0.05mm |
| 0-32" | 0.001" | ±0.0035" | 0-800mm | 0.02mm | ±0.06mm |
| 0-40" | 0.001" | ±0.004" | 0-1000mm | 0.02mm | ±0.07mm |
| Range < 800mm / 32": with depth bar 0- 450mm/18",0- 500mm/20",0- 600mm/24":optional depth base |
|||||
Note:
The dial caliper with depth bar: 300mm/12″ dial caliper, 450mm/18″ dial caliper,500mm/20″ dial caliper, 600mm/24″ dial caliper.
The dial caliper without depth bar: 800mm/32″ dial caliper, 1000mm/40″ dial caliper.

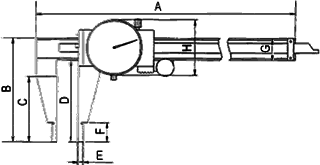

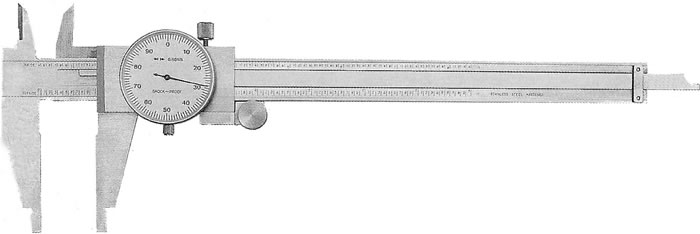

| A | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|
| 12" | 16.14" | 3.70" | 1.94" | 2.91" | 0.20" | 0.47" | 0.79" | 1.73" |
| 18" | 22.83" | 4.02" | 2.05" | 3.15" | 0.25" | 0.55" | 0.87" | 1.73" |
| 20" | 24.80" | 4.02" | 2.05" | 3.15" | 0.25" | 0.55" | 0.87" | 1.73" |
| 24" | 28.74" | 4.25" | 2.28" | 3.39" | 0.25" | 0.79" | 0.87" | 1.73" |
| 32" | 37.24" | 6.22" | 3.54" | 5.19" | 0.40" | 0.94" | 1.10" | 2.17" |
| 40" | 47.24" | 6.22" | 3.54" | 5.19" | 0.40" | 0.94" | 1.10" | 2.17" |
| Range | graduation | Accuracy | Range | graduation | Accuracy |
|---|---|---|---|---|---|
| 0-200mm | 0.02mm | ±0.03mm | 0-8" | 0.001" | ±0.0015" |
| 0-300mm | 0.02mm | ±0.04mm | 0-12" | 0.001" | ±0.002" |
| With depth bar | |||||
