Groove Caliper

Keyword: groove calipers

Digital Outside Groove Caliper

  • Specially designed for measuring outside groove which is hard to reach.
  • Manual power on/off
  • Zero setting at any position_
  • Metric/lnch system conversion at any position.
  • With data output interface.

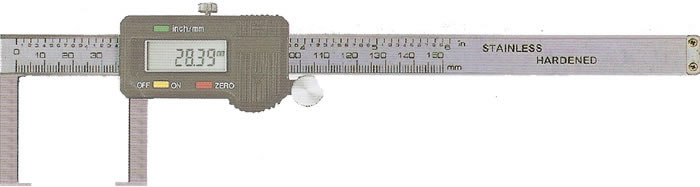

Digital outside groove caliper
Groove caliper Type-A
Outside micrometer

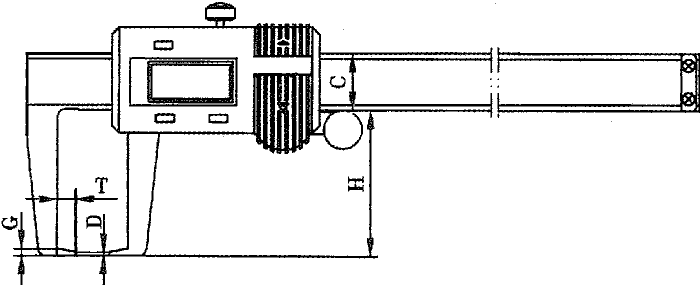

Groove calipers sketch
measuring groove
groove Calipers Type-A
Range mm/in  Resolution mm/in  H mm D mm G mm C mm   T mm  Accuracy mm
0-150 / 6" 0.01 / 0.0005" 40 / 70 1 / 1.5 2 / 3 16 5 ±0.03 / ±0.05
0-200 / 8" 0.01 / 0.0005" 50 / 80 1.5 / 2 2.5 / 3.5 16 8 ±0.04 / ±0.06
0-300 / 12" 0.01 / 0.0005" 60 / 90 1.5 / 2.5 3 / 4 17 10 ±0.05 / ±0.07
6" groove calipers, 8" groove caliper, 12" groove calipers.

Digital Inside Groove Caliper

  • Specially designed for measuring inside groove which is hard to reach.
  • Manual power on/off.
  • Zero setting at any position.
  • Metric/lnch system conversion at any position.
  • With data output interface.

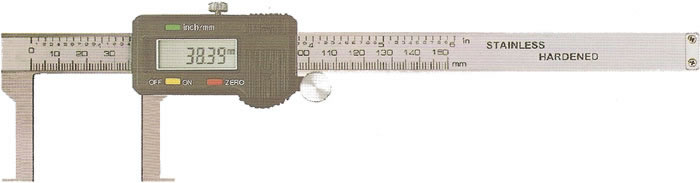

Digital inside groove caliper
Inside groove caliper Type-B
Inside micrometers

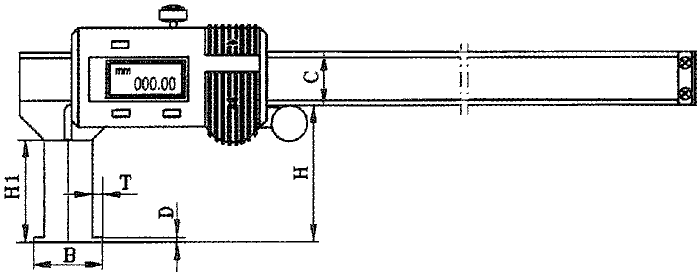

Groove calipers sketch
Inside micrometers
measuring groove
Inside groove caliper Type-B
Range mm/inResolution mm/in  H mmH1 mm   B mmC mm  D mm T mm  Accuracy mm
20/35-170 / 0.8-6.8" 0.01 / 0.0005" 40 / 70 25 / 50 20 / 35 16 1 / 2 3 / 6 ±0.03
25/40-225 / 1-9" 0.01 / 0.0005" 50 / 80 35 / 60 25 / 40 16 1 / 2 4 / 7 ±0.04
30/50-330 / 1.2-13" 0.01 / 0.0005" 60 / 90 45 / 70 30 / 50 17 1.5 / 2 5 / 9 ±0.05
6.8" inside groove caliper, 9" inside groove caliper, 13" inside groove caliper.

Vernier Inside Groove Caliper

  • Specially designed for measuring inside groove which is hard to reach
  • With fine adjustment.
Inside groove vernier caliper
Inside groove caliper Type-C To measure groove
Inside micrometers

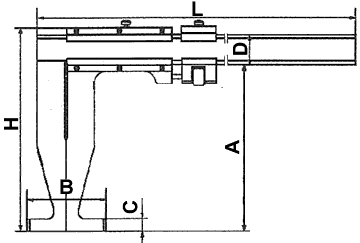

Groove calipers sketch
Inside groove caliper Type-C
Range Resolution   A B C D H L Accuracy
40-340mm 0.05mm 95mm 40mm 5mm 17mm 117mm 410mm ±0.08mm
40-340mm 0.02mm 95mm 40mm 5mm 17mm 117mm 410mm ±0.05mm
1.5-13.5" 1/128" 95mm 40mm 5mm 17mm 117mm 410mm ±1.6Graduation
1.5-13.5" 0.001" 95mm 40mm 5mm 17mm 117mm 410mm ±1.6Graduation
60-560mm 0.05mm 150mm 60mm 5mm 17mm 181.5mm 660mm ±0.10mm
60-560mm 0.02mm 150mm 60mm 5mm 17mm 181.5mm 660mm ±0.07mm
2-22" 1/128" 150mm 60mm 5mm 17mm 181.5mm 660mm ±1.6Graduation
2-22" 0.001" 150mm 60mm 5mm 17mm 181.5mm 660mm ±2.5Graduation
340mm inside groove caliper, 13.5" inside groove caliper, 560mm inside groove caliper, 22" inside groove caliper.

Groove Distance Caliper

  • Specially designed for measuring inside groove istance which is hard to reach.
  • Manual power on/off.
  • Zero setting and metric/inch system onversion at any position.
  • With data output interface.

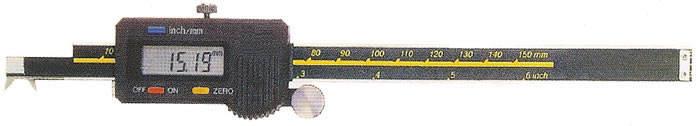

Grove distance calipers
Groove calipers Type-D To measure groove
Groove micrometer
measuring groove
Groove calipers Type-D
RangeResolution
0-150mm / 6" 0.01mm / 0.0005"
0-200mm / 8" 0.01mm / 0.0005"
0-300mm / 12" 0.01mm / 0.0005"
6" groove caliper, 8" groove calipers, 12" groove caliper.
Reference:
Groove micrometer
