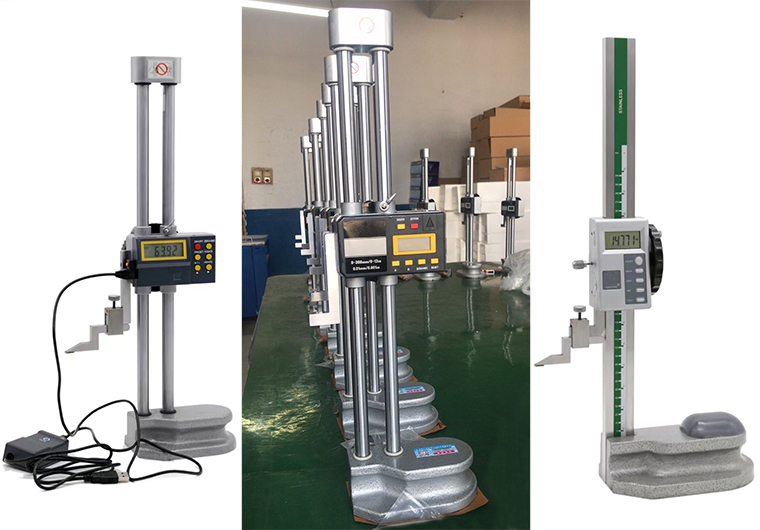

Digital Height Gauge

A digital height gauge is suitable for situations that require high precision, ease of reading, and data storage. We can provide various structural types of digital height gauges to meet your diverse needs.

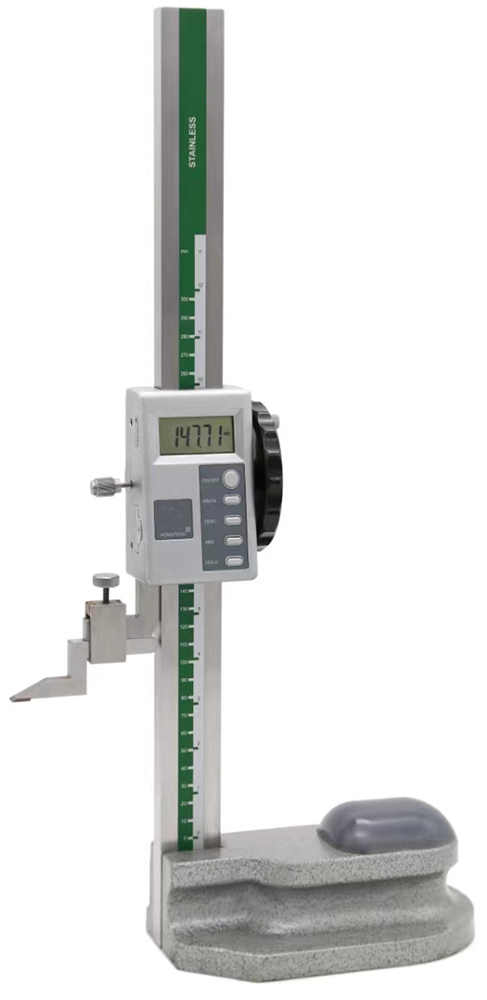

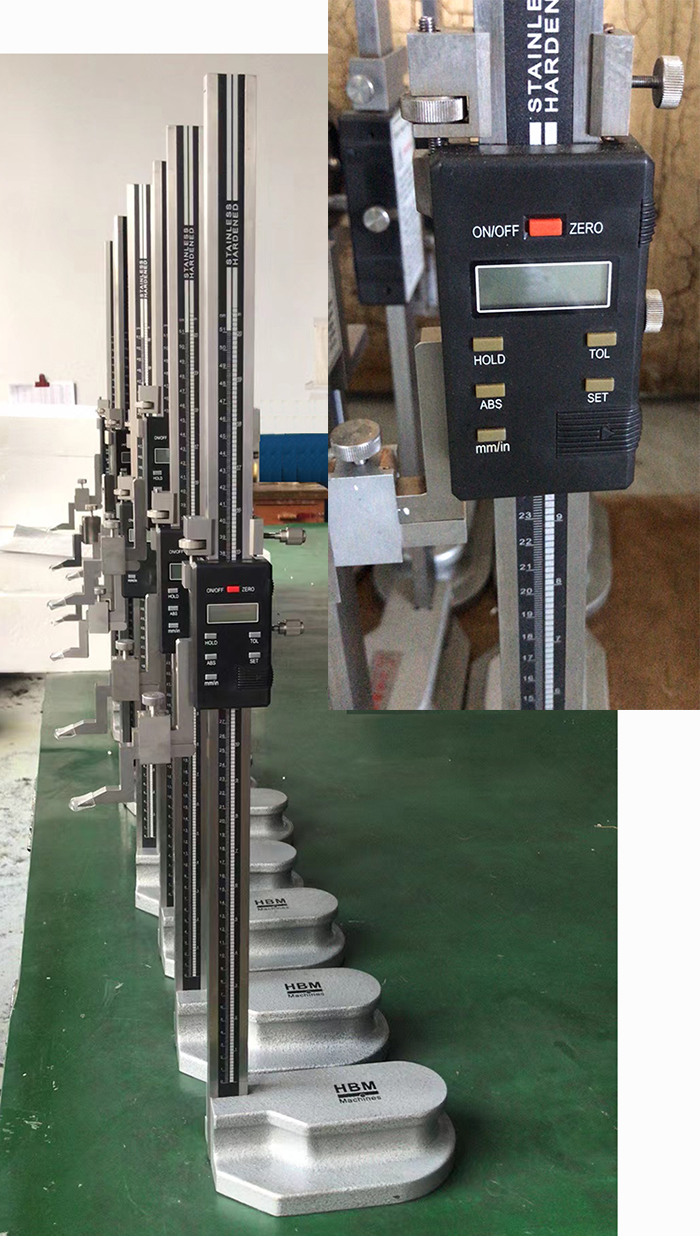

Digital Height Gauge with single column

Made of stainless steel.
Carbide tipped scriber.
With fine adjustment.
Metric/Inch system conversion at any position.
with data output interface.
Absolute measurement and comparison measurement conversion at any position.
Zero setting at any position.

SPECIFICATIONS

Digital Height Gauge with single column
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-300mm / 12 "	0.01mm / 0.0005"	±0.04mm	0-600mm / 24"	0.01mm / 0.0005"	±0.05mm
0-450mm / 18"	0.01mm / 0.0005"	±0.05mm	0-1000mm / 40"	0.01mm / 0.0005"	±0.07mm
0-500mm / 20"	0.01mm / 0.0005"	±0.05mm	0-1500mm / 60"	0.01mm / 0.0005"	±0.07mm

12" digital height gauges, 12" digital height gage, 18" digital height gage, 20" digital height gage,
24" digital height gage, 60" digital height gauge, 80" digital height gauge.

Digital Height Gauge with handwheel

Rack and pinion transmission, precise positioning.
Extra-large screen with clear and intuitive readings.
Metal housing.
Automatic shutdown, data retention.
Made of stainless steel.
Carbide tipped scriber.
With data output interface.
Metric/Inch system conversion at any position.
Absolute measurement and comparisonmeasurement conversion at any position.
Zero setting at any position.

SPECIFICATIONS

Digital Height Gauge with handwheel
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-300mm / 12 "	0.01mm / 0.0005"	±0.04mm	0-1000mm / 40"	0.01mm / 0.0005"	±0.07mm
0-600mm / 24"	0.01mm / 0.0005"	±0.05mm
repeated positioning accuracy 0.01mm.

8" digital height gauges, 12" digital height gage, 20" digital height gage, 24" digital height gage,
40" digital height gage.

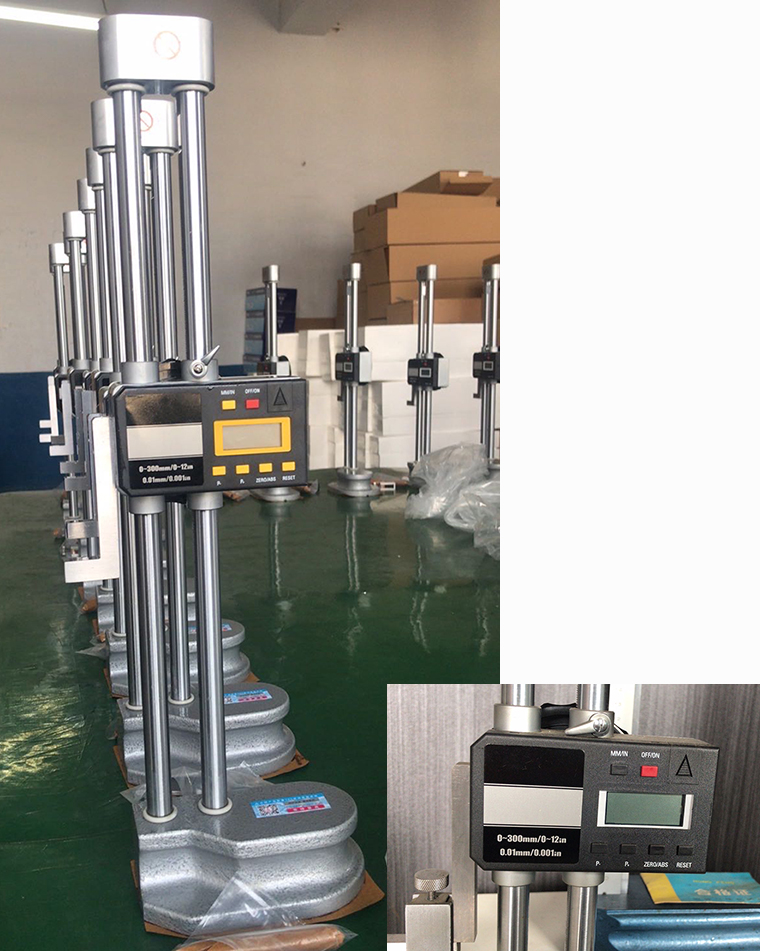

Digital height gauge with Dual-column

Rack and pinion transmission, precise positioning.
Handwheel rack and pinion transmission allows for fine adjustments.
Made of stainless steel.
Carbide tipped scriber.
With data output interface.
Metric/Inch system conversion at any position.
Absolute measurement and comparisonmeasurement conversion at any position.
Zero setting at any position.

SPECIFICATIONS

Digital height gauge with Dual-column
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-300mm / 12 "	0.01mm / 0.001"	±0.04mm	0-600mm / 24"	0.01mm / 0.001"	±0.05mm
0-450mm / 18 "	0.01mm / 0.001"	±0.05mm	0-1000mm / 40"	0.01mm / 0.001"	±0.07mm
0-500mm / 20 "	0.01mm / 0.001"	±0.05mm

8" digital height gauges, 12" digital height gage, 20" digital height gage, 24" digital height gage,
40" digital height gage.

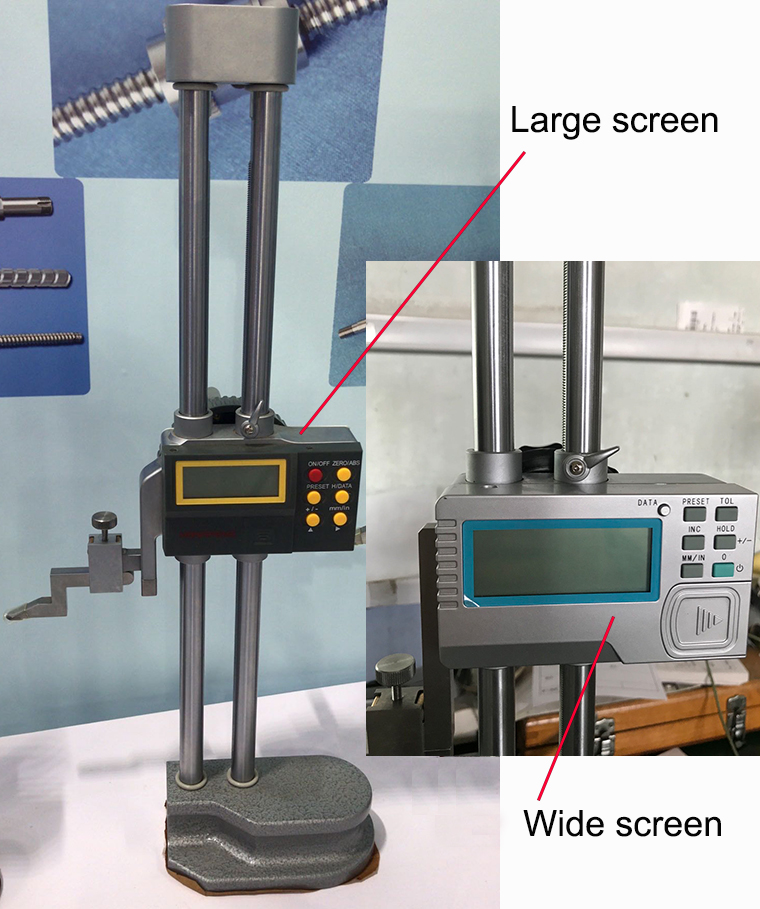

Digital height gauge with dual columns and large or wide screen

Large screen or widescreen with clear and intuitive readings.
Optional: Bluetooth data transmission.
Carbide tipped scriber.
With data output interface.
Metric/Inch system conversion at any position.
Absolute measurement and comparisonmeasurement conversion at any position.
Zero setting at any position.

SPECIFICATIONS

Digital height gauge with dual columns and Large screen
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-300mm / 12 "	0.005mm /0.0005"	±0.04mm	0-600mm / 24"	0.005mm / 0.0005"	±0.05mm
0-500mm / 20 "	0.005mm / 0.0005"	±0.05mm	0-1000mm / 40"	0.005mm / 0.0005"	±0.07mm

8" digital height gauges, 12" digital height gage, 20" digital height gage, 24" digital height gage,
40" digital height gage.

SPECIFICATIONS

Digital height gauge with dual columns and wide screen
Range	Graduation	Accuracy	Range	Graduation	Accuracy
0-300mm / 12 "	0.001mm /0.0005"	±0.04mm	0-600mm / 24"	0.001mm / 0.0005"	±0.05mm
0-500mm / 20 "	0.001mm / 0.0005"	±0.05mm	0-1000mm / 40"	0.001mm / 0.0005"	±0.07mm

8" digital height gauges, 12" digital height gage, 20" digital height gage, 24" digital height gage,
40" digital height gage.

Reference:

Vernier height gauge Dial height gauge High precision digital height gauge
