Digital Fractional Caliper

Digital Fractional Caliper (0-300mm /12")

  • Fractional inch and decimal inch and millimeter conversion at any position.
  • Zero setting at any position.
  • Large LCD display for easy reading.
Factional digital caliper Type-A
Factional digital caliper Type-B
Digital fractional caliper Type-A Type-B
Range Resolution Accuracy
0-150mm/6"0.01mm / 0.0005" 1/32"±0.03mm
0-200mm/8"0.01mm / 0.0005" 1/128"±0.03mm
0-150mm/6"0.01mm / 0.0005" 1/64"±0.03mm
0-200mm/8"0.01mm / 0.0005" 1/256"±0.03mm
0-150mm/6"0.01mm / 0.0005" 1/128"±0.03mm
0-300mm/12"0.01mm / 0.0005" 1/32"±0.04mm
0-150mm/6"0.01mm / 0.0005" 1/256"±0.03mm
0-300mm/12"0.01mm / 0.0005" 1/64"±0.04mm
0-200mm/8"0.01mm / 0.0005" 1/32"±0.03mm
0-300mm/12"0.01mm / 0.0005" 1/128"±0.04mm
0-200mm/8"0.01mm / 0.0005" 1/64"±0.03mm
0-300mm/12"0.01mm / 0.0005" 1/256"±0.04mm
0-150mm/6" Fractional digital calipers and 0-200/8" fractional digital caliper are With depth bar.

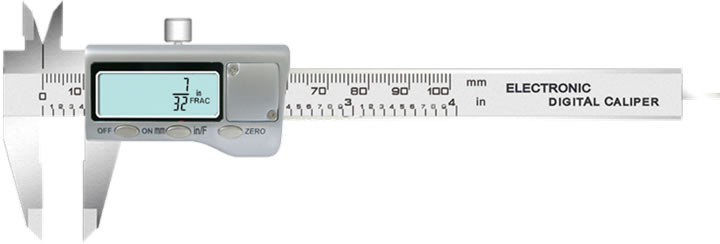

Fractional Digital Caliper (0-100mm/4" )

  • Fractional inch and decimal inch and millimeter conversion at any position.
  • Zero setting at any position.
  • Large LCD display for easy reading.
Digital fractional caliper Type-C
Digital fractional caliper Type-C
Fractional digital calipers Type-C Type-D
Range Resolution Accuracy
0-150mm/60.01mm / 0.0005 1/32±0.03mm
0-150mm/60.01mm / 0.0005 1/64±0.03mm
0-150mm/60.01mm / 0.0005 1/128±0.03mm
0-150mm/60.01mm / 0.0005 1/256±0.03mm
0-200mm/80.01mm / 0.0005 1/32±0.03mm
0-200mm/80.01mm / 0.0005 1/64±0.03mm
0-200mm/80.01mm / 0.0005 1/128±0.03mm
0-200mm/80.01mm / 0.0005 1/256±0.03mm
0-300mm/120.01mm / 0.0005 1/32±0.04mm
0-300mm/120.01mm / 0.0005 1/64±0.04mm
0-300mm/120.01mm / 0.0005 1/128±0.04mm
0-300mm/120.01mm / 0.0005 1/256±0.04mm
0-100mm/4" Fractional digital caliper is with depth bar.

Plastic Fractional Digital Calipers

  • Fractional inch and decimal inch and millimeter conversion at any position.
  • Can be used in schools,laboratories,carpentry,farms and DIY at home.
  • Can be used to measure magnetic objects.
  • Free of hurting when measuring.
  • Zero setting at any position.
  • 0-75mm/3" Plastic digital fractional caliper can be custom.
4" fractional digital Type-E
6" digital fractional caliper Type-F
Plastic fractional digital calipers Type-E
Range Resolution Accuracy
0-100mm/40.01mm / 0.0005 1/32±0.2mm / 0.01
0-100mm/40.01mm / 0.0005 1/128±0.2mm / 0.01
0-100mm/40.01mm / 0.0005 1/64±0.2mm / 0.01
0-100mm/40.01mm / 0.0005 1/256±0.2mm / 0.01
0-100mm/4" Fractional digital calipers can be with depth bar.
Plastic fractional digital caliper Type-F
Range Resolution Accuracy
0-150mm/60.01mm / 0.0005 1/32±0.2mm / 0.01
0-150mm/60.01mm / 0.0005 1/128±0.2mm / 0.01
0-150mm/60.01mm / 0.0005 1/64±0.2mm / 0.01
0-150mm/60.01mm / 0.0005 1/256±0.2mm / 0.01
0-150mm/6" Digital fractional caliper can be with depth bar.

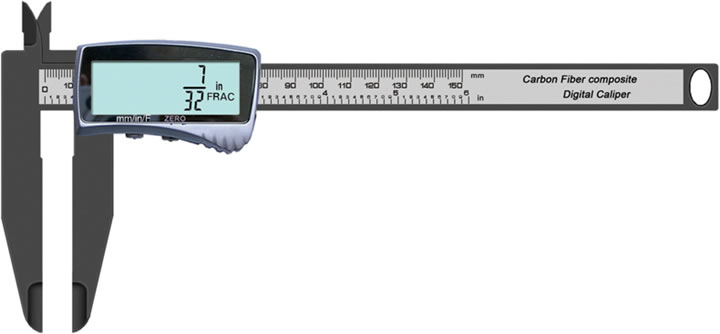

Plastic Digital Fractional Caliper with long jaws

Type-G 6" fractional digital caliper
Type-H 12" fractional digital calipers
Plastic fractional digital caliper with long jaws Type-G
Range Resolution Accuracy
0-150mm/60.01mm / 0.0005 1/32±0.3mm/0.01
0-200mm/80.01mm / 0.0005 1/32±0.3mm/0.01
0-150mm/60.01mm / 0.0005 1/64±0.3mm/0.01
0-200mm/80.01mm / 0.0005 1/64±0.3mm/0.01
0-150mm/60.01mm / 0.0005 1/128±0.3mm/0.01
0-200mm/80.01mm / 0.0005 1/128±0.3mm/0.01
0-150mm/60.01mm / 0.0005 1/256±0.3mm/0.01
0-200mm/80.01mm / 0.0005 1/256±0.3mm/0.01
The long jaw length of the plastic fractional digital calipers: 75mm/3"

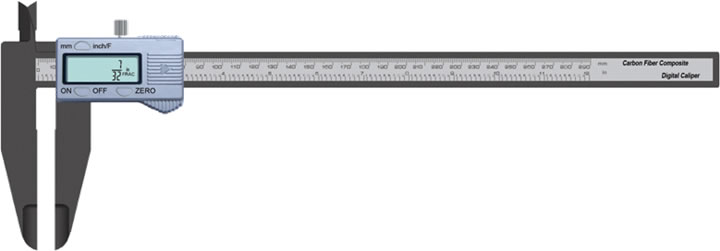

Plastic digital fractional caliper with long jaws(0-300) Type-H
Range Resolution Accuracy
0-300mm/120.01mm / 0.0005 1/32±0.3mm / 0.01
0-300mm/120.01mm / 0.0005 1/128±0.3mm / 0.01
0-300mm/120.01mm / 0.0005 1/64±0.3mm / 0.01
0-300mm/120.01mm / 0.0005 1/256±0.3mm / 0.01
The long jaw length of the plastic fractional digital caliper: 90.5mm/3.55"
Reference:
Fractional dial caliper
