Digital Depth Gauge

Thinner blade anvil for effective measurement of narrow slots.

  • For depth, step,thickness,internal and external groove measurements.

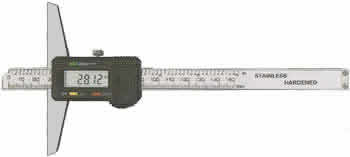

Digital depth gauge Type-A1

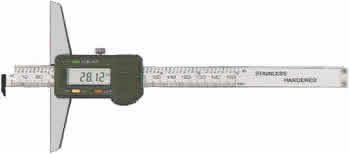

Digital depth gauges with a hook Type-A2

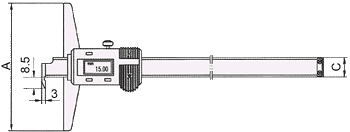

Digital depth gage sketch

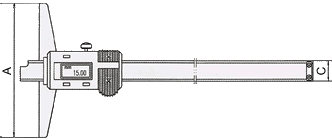

Digital depth gauges sketch
Digital depth gage Type-A1 Type-A2
Range Graduation A C Accuracy
0-150mm / 6"0.01mm / 0.0005"102mm / 150mm15.5mm±0.03mm
0-200mm / 8"0.01mm / 0.0005"102mm / 50mm15.5mm±0.03mm
0-300mm / 12"0.01mm / 0.0005"102mm / 50mm15.5mm±0.04mm
0-500mm / 20"0.01mm / 0.0005"102mm / 50mm17mm±0.05mm
6" digital depth gauge, 8" digital depth gauges, 12" digital depth gage, 20" digital depth gauge.

Digital Depth Gauges with Slim Rod

  • Slim rod for effective measurement of narrow slots.

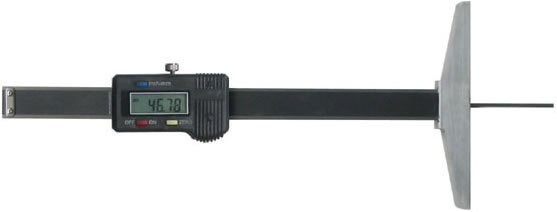

Digital depth gauges Type-B
Digital depth gauges with slim rod
Range Graduation Accuracy
0-50mm0.01mm±0.03mm
0-100mm0.01mm±0.03mm
0-150mm0.01mm±0.03mm

Digital Depth Gage with Needle

  • Can measure the depth of narrow grooves and small holes etc.

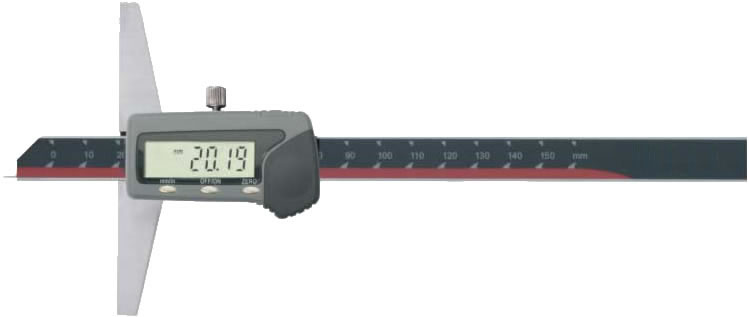

Digital depth gage with needle Type-C

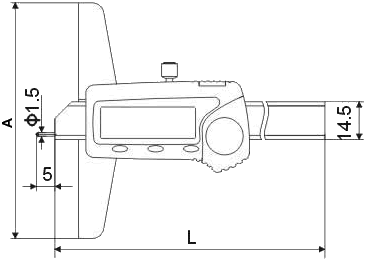

Digital depth gauge sketch
Digital depth gage with needle
Range Graduation Accuracy
0-150mm / 6"0.01mm / 0.0005"±0.03mm
0-200mm / 8"0.01mm / 0.0005"±0.03mm
0-300mm / 12"0.01mm / 0.0005"±0.04mm
Reference:
Depth MicrometerVernier depth gaugeDial depth gaugeDial depth indicator
