Coolant Proof Caliper

  • The technology of capacitive sensor or electromagnetic sensor adopted.
  • It can work in the water-The degree of protection is IP65
  • With on/off button and data output interface.
IP65 Coolant proof calipers Type-A
Coolant proof calipers Type-A
Range Resolution
0-150mm / 6"0.01mm/0.0005"
6" coolant proof caliper

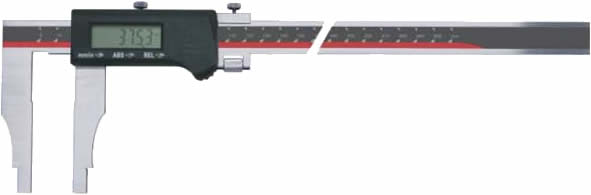

IP66 Coolant proof caliper Type-B
  • The degree of protection is IP66
  • Can be exposed to cooling fluid, water, dust or oil
  • With power on/offLeave it aside still for 20 minutes and it'll be  power off automatically
  • Provided with a fine-adjustment carriage
  • Round measuring faces for accurate inside measurement
  • Metric/Inch system conversion and zero setting at any position
  • Absolute measurement and comparison measurement   conversion at any position

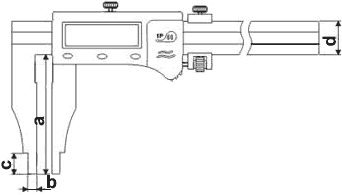

IP66 Coolant proof calipers sketch
Coolant proof calipers Type-B
Range Resolution a b c d Accuracy
0-500mm0.01mm/0.0005"100mm10mm18mm24mm±0.06mm
0-500mm0.01mm/0.0005"150mm10mm18mm24mm±0.06mm
0-600mm0.01mm/0.0005"100mm10mm18mm24mm±0.06mm
0-600mm0.01mm/0.0005"150mm10mm18mm24mm±0.06mm
0-800mm0.01mm/0.0005"150mm10mm24mm31mm±0.06mm
0-800mm0.01mm/0.0005"200mm10mm24mm31mm±0.06mm
0-1000mm0.01mm/0.0005"150mm10mm24mm31mm±0.07mm
0-1000mm0.01mm/0.0005"200mm10mm24mm31mm±0.07mm
20" coolant proof caliper, 24" coolant proof calipers, 32" coolant proof caliper, 40" coolant proof calipers.
IP54 Coolant proof calipers Type-C
  • It can work after cleaning the splashed water on it.
  • The degree of protection is IP54.
  • With power on/off button and data output interface.
  • Metric/Inch system conversion at any position.
Coolant proof calipers Type-C
Range Resolution Accuracy
0-150mm0.01mm/0.0005"±0.03mm
0-200mm0.01mm/0.0005"±0.03mm
6" coolant proof caliper, 8" coolant proof caliper.
Reference:
IP67 caliper
