Centerline Caliper

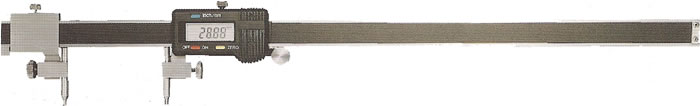

Digital Centerline Caliper
To measure the centerline between two holes whose center distance is above 5mm.
Manual power onloff_
Zero setting at any position.
Metric/lnch system conversion at any position.
With data output interface.
Measuring distance tools Type-A

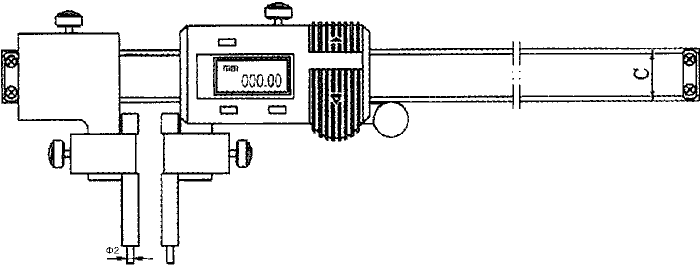

Measuring distance tools Sketch
To measure the center distance between two holes
Digital centerline caliper
Range
Resolution
C
Accuracy
5-150mm / 0.2"-6"
0.01mm / 0.0005"
17mm
±0.06mm
5-200mm / 0.2"-8"
0.01mm / 0.0005"
17mm
±0.06mm
12" combination square, 300mm combination square, (6" combination square), (150mm combination square).

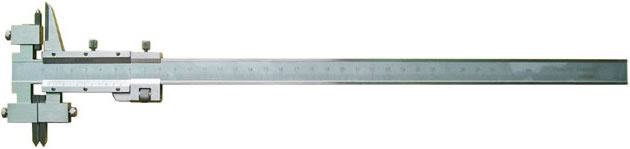

Apothem and Centerline Vernier Caliper
Can measure the apothem of workpiece and the centerline of workpiece.
Graduation: 0.02mm.
Measuring distance tools Type-B
