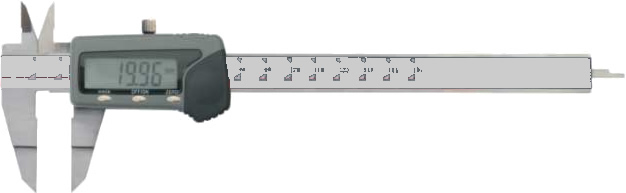

Minimum narrow slots: 0.75mm/0.03″ for range 0-150mm/6″ or 0-200mm/8″.
Minimum narrow slots: 1mm/0.04″ for range 0-300mm/12″.

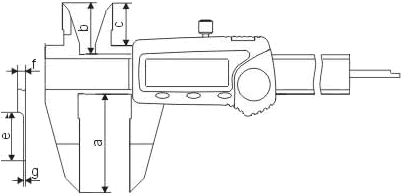

| Range | Resolution | Accuracy | a | b | c | e | f | g |
|---|---|---|---|---|---|---|---|---|
| 0-150mm | 0.01mm/0.0005" | ±0.03mm | 40mm | 21mm | 16.5mm | 20mm | 3.2mm | 0.75mm |
| 0-150mm | 0.01mm/0.0005" | ±0.03mm | 40mm | 21mm | 16.5mm | 18mm | 3.2mm | 0.75mm |
| 0-200mm | 0.01mm/0.0005" | ±0.03mm | 50mm | 24mm | 19.5mm | 20mm | 3.6mm | 0.75mm |
| 0-200mm | 0.01mm/0.0005" | ±0.03mm | 50mm | 24mm | 19.5mm | 18mm | 3.6mm | 0.75mm |
| 0-300mm | 0.01mm/0.0005" | ±0.04mm | 60mm | 25mm | 20.5mm | 20mm | 3.8mm | 1mm |
| 0-300mm | 0.01mm/0.0005" | ±0.04mm | 60mm | 25mm | 20.5mm | 18mm | 3.8mm | 1mm |
